Von Schweikert Audio offers a wide range of Hi-End Audio products for home theatre, studio use and personal music listening. With floor standing speakers, bookshelf and center channel and subwoofers for your home theatre, Von Schweikert gives you more options with a product line where you can find the speakers perfect for you.
VR
VR.thirty
VR.thirty
The VR.thirty is the latest addition to the VR series of full-range loudspeakers and is the fullest expression of our price-to-performance paradigm. Affectionately referred to as the “Mini Seven,” after our ULTRA.seven model it resembles, the VR.thirty is our second design utilizing three ultra-fast ceramic honeycomb woofers; it also features a low-mass, high-definition ceramic midrange driver, our signature beryllium dome tweeter, and a rear-mounted ambient retrieval ribbon driver. Hand-built point-to-point crossovers wired throughout with MasterBuilt Reference cabling, the VR.thirty is available in either a passive or Foundation Hybrid Bass Management System. Powerful, deep, and nuanced bass, see through to the midrange, and detailed, extended high-frequency response are the VR.thirty’s hallmarks that every discerning music lover will find compelling. Like all VSA loudspeakers, the VR.thirty has no discernible sweet spot and can be enjoyed anywhere in the room.
Specifications
FREQ RESP: 25Hz – 40KHz
SENSITIVITY: 87.5dB @ 1w/1m
IMPEDANCE: 4ohms nominal
REC. MIN. POWER: 80 watts
SIZE: 41″ H x 11″ W x 23″ D
WEIGHT: 190 lbs each
OPTIONAL AMPLIFIER Power: 800 watts R.M.S.
Foundation Hybrid Bass System
In the Von Schweikert way, the 800-watt Foundation amplifier powers the woofers. Unlike other active DSP designs, the full range of the signal passes entirely through the analog crossover network. This allows the tonal characteristics of the customer’s preferred power amplifier without compromise yet offers the increased dynamics and precise adjustment of your in-room bass response. Whether you prefer the sound signature of a medium power tube amplifier or a high power solid-state unit, no problem. The analog purity, increased power, and dynamics enhance your investment in a high-end loudspeaker.
Audio professionals and seasoned audiophiles understand the limiting factor in the performance of a system is the listening room. While some listeners have the luxury of a dedicated room outfitted with expensive and often ineffective room treatment, most do not. Within the spectrum of room acoustic challenges, speaker placement is dictated mainly by specific room bass modes activated by the speaker within a room. As a result, audiophiles traditionally place their speakers well into the room to mitigate this problem. It should be noted that irregular bass output caused by the room significantly affects middle and high frequencies with overall tonal balance.
The Foundation Hybrid Bass System allows listeners to locate their speakers where they look and sound best. This flexibility and exceptional room optimization tool is accomplished in a completely analog mode without the use of digital signal processing eschewed by purists because of its potential to introduce time and phase distortions and without affecting the performance of the main system amplifier.
This speaker model can be built as fully passive, or as an optional upgrade with the Foundation Hybrid Bass System.
Triple-wall Quiet Cabinet
Developed in 1994 by Albert Von Scheweikert in association with lab partners from Cal Tech, Von Schweikert cabinets are fabricated using a proprietary triple-wall laminate construction technique. Despite inventive efforts by other makers using aluminum and sheet extruded composites, this triple-wall method remains the gold standard of non-resonant enclosure design.
Our quiet cabinet design’s outermost layer uses a resin-based HDF (high-density fiberboard) sheet. The middle layer is made of synthetic stone adhered to the outer layer using a resin binder. The final layer is a dense woven damping material. The resulting triple-wall composite is approximately three inches in overall thickness. Once the cabinet is assembled, internal bracing is added so that various areas of the cabinet have varying stiffness levels. The elaborate construction techniques combine to create differing native Qs, working together as a symbiotic system of resonance-cancellation to efficiently turn unwanted energy into heat for the absolute best in cabinet vibration control.
Rear Soundfield Creation
Albert Von Schweikert’s earliest research led to the development of an adjustable ambiance retrieval system radiating from the speaker’s rear to recreate a natural soundfield of space & depth using a concert hall recording method known as the spaced omni method. This system replicates the effect when microphones used for recording encode the musical signal with overlaying pickup response patterns.
After studios make a series of recordings using several different microphone types, the playback from each device has tonal differences and create various imaging patterns. This creates a differing perception of space & depth dependent on the recording environment, microphone placement, and each microphone’s distinct off-axis polar response. From this framework, our rear soundfield system creates a natural soundstage, regardless of the recording, microphone type, and recording technique used. Most importantly, the system allows the playback response to remain as close as possible to what was intended by the engineer.
Drivers & Crossovers
For our midrange and bass drivers (exclusive of the sub-bass drivers found in our ULTRA.nine, ULTRA.eleven, and SHOCKWAVE subwoofer series), Von Schweikert has selected Accuton of Germany’s drivers manufactured using ceramic cones. Producing drivers made from Al²O³ hard ceramics offers an incredibly light, stiff cone with high internal damping. Ceramic cones also offer our engineers a mass/stiffness ratio surpassed only by cones made of beryllium and diamond, which are materials that most often are only suitable for smaller diameter drivers used for reproducing high frequencies, such as tweeters Ceramic drivers offer us the best impulse response and significantly reduced distortion over more conventional drivers, as well as we as increased bandwidth and linearly within their useable range. Industry professionals recognize VSA as one of the most experienced and best practices for using these extraordinary drivers.
For the highest frequencies, we have selected the best Danish beryllium tweeters. Our chosen beryllium tweeter is extremely stiff and light. It has high power handling, exceptional detail, and superb dispersion across its usable range. While many associate beryllium tweeters with a certain sterile sound, by correctly applying our proprietary crossover network topology to this remarkable driver, the opposite is true. In short, the VSA beryllium tweeter offers some of the finest and most satisfying high-frequency reproduction in any commercial loudspeaker, regardless of price.
Custom Cabinet Finishing
Beauty and artistry worthy of the Von Schweikert Listening Experience. Today’s high-end speakers are known for their luxurious materials, design and quality. And let’s face it, this contributes to the price and pride of ownership. Von Schweikert’s painted finishes are completely bespoke affairs, the completion of which is accomplished by a true artisan with a storied background tying in perfectly with the beauty and the emotion of the instruments we create.
Fausto Reyes, is responsible for the finish of every speakers that leaves our factory. Fausto and his team painstakingly labor by hand to apply our brilliant multi-coat finishes. While we regularly apply automotive inspired paints colors, Fausto’s process is different. The reason for this is before joining Von Schweikert, Fausto led the pro division of Fender Guitar where he oversaw the painting of custom guitar finishes for some of the most notable musicians and wealthiest collectors in the world— Prince and Aerosmith to name just a few. For those who respect and value such artistry and choose one can say truly say they own a “Fausto”.
Add to this our cabinet makers are a second generation American builder reflecting the same craft ethos who have been building cabinets in California for nearly five decades just like the Von Schweikert’s. Proudly building and creating our product in the US, we can say without exaggeration that buying a Von Schweikert loudspeaker is an investment in American craft, heritage and technology.
VR.fifty
VR.fifty
Our award-winning VR.fifty (formerly VR-55 Mk II SE) offers performance comparable to our top-of-the-line Ultra Series speakers in a more compact and affordable package. The VR.fifty delivers no compromise, full-range sound in any size room, even those with smaller listening spaces. Equipped with powerful dual 8.5” ceramic woofers, our finest underhung ceramic midrange, and a beryllium tweeter from our Ultra Series, the VR.fifty provides exceptional value without compromise. A rear-firing ribbon ambient retrieval tweeter helps deliver a wide sweet spot and our signature holographic imaging. All drivers are housed in critically damped, multi-layer composite enclosures, as always finished in a stunning array of exceptional multi-layer automotive finishes. Available in full passive or with our Foundation Hybrid Bass System, the VR.fifty represents an approachable end-game choice for discerning music lovers seeking a loudspeaker value without compromise.
Specifications
• FREQ RESP: 21Hz – 40kHz
• SENSITIVITY: 88dB @ 1w/1m
• IMPEDANCE: 4ohms
• REC. MIN. POWER: 50 watts
• SIZE: 42″ x 13″ x 24″
• WEIGHT: 186 lbs
• FOUNDATION HYBRID BASS AMPLIFIER: 800 watts R.M.S. (optional upgrade)
Foundation Hybrid Bass System
In the Von Schweikert way, the 800-watt Foundation amplifier powers the woofers. Unlike other active DSP designs, the full range of the signal passes entirely through the analog crossover network. This allows the tonal characteristics of the customer’s preferred power amplifier without compromise yet offers the increased dynamics and precise adjustment of your in-room bass response. Whether you prefer the sound signature of a medium power tube amplifier or a high power solid-state unit, no problem. The analog purity, increased power, and dynamics enhance your investment in a high-end loudspeaker.
Audio professionals and seasoned audiophiles understand the limiting factor in the performance of a system is the listening room. While some listeners have the luxury of a dedicated room outfitted with expensive and often ineffective room treatment, most do not. Within the spectrum of room acoustic challenges, speaker placement is dictated mainly by specific room bass modes activated by the speaker within a room. As a result, audiophiles traditionally place their speakers well into the room to mitigate this problem. It should be noted that irregular bass output caused by the room significantly affects middle and high frequencies with overall tonal balance.
The Foundation Hybrid Bass System allows listeners to locate their speakers where they look and sound best. This flexibility and exceptional room optimization tool is accomplished in a completely analog mode without the use of digital signal processing eschewed by purists because of its potential to introduce time and phase distortions and without affecting the performance of the main system amplifier.
This speaker model can be built as fully passive, or as an optional upgrade with the Foundation Hybrid Bass System.
Triple-wall Quiet Cabinet
Developed in 1994 by Albert Von Scheweikert in association with lab partners from Cal Tech, Von Schweikert cabinets are fabricated using a proprietary triple-wall laminate construction technique. Despite inventive efforts by other makers using aluminum and sheet extruded composites, this triple-wall method remains the gold standard of non-resonant enclosure design.
Our quiet cabinet design’s outermost layer uses a resin-based HDF (high-density fiberboard) sheet. The middle layer is made of synthetic stone adhered to the outer layer using a resin binder. The final layer is a dense woven damping material. The resulting triple-wall composite is approximately three inches in overall thickness. Once the cabinet is assembled, internal bracing is added so that various areas of the cabinet have varying stiffness levels. The elaborate construction techniques combine to create differing native Qs, working together as a symbiotic system of resonance-cancellation to efficiently turn unwanted energy into heat for the absolute best in cabinet vibration control.
Rear Soundfield Creation
Albert Von Schweikert’s earliest research led to the development of an adjustable ambiance retrieval system radiating from the speaker’s rear to recreate a natural soundfield of space & depth using a concert hall recording method known as the spaced omni method. This system replicates the effect when microphones used for recording encode the musical signal with overlaying pickup response patterns.
After studios make a series of recordings using several different microphone types, the playback from each device has tonal differences and create various imaging patterns. This creates a differing perception of space & depth dependent on the recording environment, microphone placement, and each microphone’s distinct off-axis polar response. From this framework, our rear soundfield system creates a natural soundstage, regardless of the recording, microphone type, and recording technique used. Most importantly, the system allows the playback response to remain as close as possible to what was intended by the engineer.
Drivers & Crossovers
For our midrange and bass drivers (exclusive of the sub-bass drivers found in our ULTRA.nine, ULTRA.eleven, and SHOCKWAVE subwoofer series), Von Schweikert has selected Accuton of Germany’s drivers manufactured using ceramic cones. Producing drivers made from Al²O³ hard ceramics offers an incredibly light, stiff cone with high internal damping. Ceramic cones also offer our engineers a mass/stiffness ratio surpassed only by cones made of beryllium and diamond, which are materials that most often are only suitable for smaller diameter drivers used for reproducing high frequencies, such as tweeters Ceramic drivers offer us the best impulse response and significantly reduced distortion over more conventional drivers, as well as we as increased bandwidth and linearly within their useable range. Industry professionals recognize VSA as one of the most experienced and best practices for using these extraordinary drivers.
For the highest frequencies, we have selected the best Danish beryllium tweeters. Our chosen beryllium tweeter is extremely stiff and light. It has high power handling, exceptional detail, and superb dispersion across its usable range. While many associate beryllium tweeters with a certain sterile sound, by correctly applying our proprietary crossover network topology to this remarkable driver, the opposite is true. In short, the VSA beryllium tweeter offers some of the finest and most satisfying high-frequency reproduction in any commercial loudspeaker, regardless of price.
Custom Cabinet Finishing
Beauty and artistry worthy of the Von Schweikert Listening Experience. Today’s high-end speakers are known for their luxurious materials, design and quality. And let’s face it, this contributes to the price and pride of ownership. Von Schweikert’s painted finishes are completely bespoke affairs, the completion of which is accomplished by a true artisan with a storied background tying in perfectly with the beauty and the emotion of the instruments we create.
Fausto Reyes, is responsible for the finish of every speakers that leaves our factory. Fausto and his team painstakingly labor by hand to apply our brilliant multi-coat finishes. While we regularly apply automotive inspired paints colors, Fausto’s process is different. The reason for this is before joining Von Schweikert, Fausto led the pro division of Fender Guitar where he oversaw the painting of custom guitar finishes for some of the most notable musicians and wealthiest collectors in the world— Prince and Aerosmith to name just a few. For those who respect and value such artistry and choose one can say truly say they own a “Fausto”.
Add to this our cabinet makers are a second generation American builder reflecting the same craft ethos who have been building cabinets in California for nearly five decades just like the Von Schweikert’s. Proudly building and creating our product in the US, we can say without exaggeration that buying a Von Schweikert loudspeaker is an investment in American craft, heritage and technology.
Awards & Recognition
• Occasional Best of 2019
• 2020 The Absolute Sound Editorsʼ Choice Awards
• 2015 Golden Ear The Absolute Sound Awards
• 2016 The Absolute Sound Editorsʼ Choice Awards
• RECOMMENDED COMPONENT 2021: Class A
• SHOW STANDOUT: Florida Audio Expo 2019
• BEST OF SHOW: Florida Audio Expo 2019
ULTRA
ULTRA.five
ULTRA.five
The ULTRA.five (formerly the ULTRA 55) is designed for audio enthusiasts seeking a compact, full-range, statement-level loudspeaker without compromises. The ULTRA.five features top-level driver components, custom crossover elements, and composite layered cabinet construction. Additionally, the ULTRA.five incorporates our proprietary Ultra internal wiring. Each Ultra crossover is meticulously hand-soldered point-to-point and precisely calibrated for optimal accuracy and performance. Uniquely, the back panel of the ULTRA.five is equipped with three professional audio autotransformers, allowing individual control over each frequency band. Consider pairing the U-five with our Foundation Analog Bass Control System for enhanced room placement flexibility and in-room performance. Choose from a range of stunning stock or custom multi-layer automotive finishes to complement your ULTRA speakers and make the ULTRA.five the last stop on your audio journey.
Specifications
• FREQ RESP: 20Hz – 40KHz
• SENSITIVITY: 89dB @ 1w/1m
• IMPEDANCE: 4ohms
• REC. MIN. POWER: 60 watts
• SIZE: 42″ x 13″ x 24″
• WEIGHT: 190 lbs each
• FOUNDATION HYBRID BASS AMPLIFIER: 800 watts R.M.S. (optional upgrade)
Foundation Hybrid Bass System
In the Von Schweikert way, the 800-watt Foundation amplifier powers the woofers. Unlike other active DSP designs, the full range of the signal passes entirely through the analog crossover network. This allows the tonal characteristics of the customer’s preferred power amplifier without compromise yet offers the increased dynamics and precise adjustment of your in-room bass response. Whether you prefer the sound signature of a medium power tube amplifier or a high power solid-state unit, no problem. The analog purity, increased power, and dynamics enhance your investment in a high-end loudspeaker.
Audio professionals and seasoned audiophiles understand the limiting factor in the performance of a system is the listening room. While some listeners have the luxury of a dedicated room outfitted with expensive and often ineffective room treatment, most do not. Within the spectrum of room acoustic challenges, speaker placement is dictated mainly by specific room bass modes activated by the speaker within a room. As a result, audiophiles traditionally place their speakers well into the room to mitigate this problem. It should be noted that irregular bass output caused by the room significantly affects middle and high frequencies with overall tonal balance.
The Foundation Hybrid Bass System allows listeners to locate their speakers where they look and sound best. This flexibility and exceptional room optimization tool is accomplished in a completely analog mode without the use of digital signal processing eschewed by purists because of its potential to introduce time and phase distortions and without affecting the performance of the main system amplifier.
This speaker model can be built as fully passive, or as an optional upgrade with the Foundation Hybrid Bass System.
Triple-wall Quiet Cabinet
Developed in 1994 by Albert Von Scheweikert in association with lab partners from Cal Tech, Von Schweikert cabinets are fabricated using a proprietary triple-wall laminate construction technique. Despite inventive efforts by other makers using aluminum and sheet extruded composites, this triple-wall method remains the gold standard of non-resonant enclosure design.
Our quiet cabinet design’s outermost layer uses a resin-based HDF (high-density fiberboard) sheet. The middle layer is made of synthetic stone adhered to the outer layer using a resin binder. The final layer is a dense woven damping material. The resulting triple-wall composite is approximately three inches in overall thickness. Once the cabinet is assembled, internal bracing is added so that various areas of the cabinet have varying stiffness levels. The elaborate construction techniques combine to create differing native Qs, working together as a symbiotic system of resonance-cancellation to efficiently turn unwanted energy into heat for the absolute best in cabinet vibration control.
Rear Soundfield Creation
Albert Von Schweikert’s earliest research led to the development of an adjustable ambiance retrieval system radiating from the speaker’s rear to recreate a natural soundfield of space & depth using a concert hall recording method known as the spaced omni method. This system replicates the effect when microphones used for recording encode the musical signal with overlaying pickup response patterns.
After studios make a series of recordings using several different microphone types, the playback from each device has tonal differences and create various imaging patterns. This creates a differing perception of space & depth dependent on the recording environment, microphone placement, and each microphone’s distinct off-axis polar response. From this framework, our rear soundfield system creates a natural soundstage, regardless of the recording, microphone type, and recording technique used. Most importantly, the system allows the playback response to remain as close as possible to what was intended by the engineer.
Drivers & Crossovers
For our midrange and bass drivers (exclusive of the sub-bass drivers found in our ULTRA.nine, ULTRA.eleven, and SHOCKWAVE subwoofer series), Von Schweikert has selected Accuton of Germany’s drivers manufactured using ceramic cones. Producing drivers made from Al²O³ hard ceramics offers an incredibly light, stiff cone with high internal damping. Ceramic cones also offer our engineers a mass/stiffness ratio surpassed only by cones made of beryllium and diamond, which are materials that most often are only suitable for smaller diameter drivers used for reproducing high frequencies, such as tweeters Ceramic drivers offer us the best impulse response and significantly reduced distortion over more conventional drivers, as well as we as increased bandwidth and linearly within their useable range. Industry professionals recognize VSA as one of the most experienced and best practices for using these extraordinary drivers.
For the highest frequencies, we have selected the best Danish beryllium tweeters. Our chosen beryllium tweeter is extremely stiff and light. It has high power handling, exceptional detail, and superb dispersion across its usable range. While many associate beryllium tweeters with a certain sterile sound, by correctly applying our proprietary crossover network topology to this remarkable driver, the opposite is true. In short, the VSA beryllium tweeter offers some of the finest and most satisfying high-frequency reproduction in any commercial loudspeaker, regardless of price.
Custom Cabinet Finishing
Beauty and artistry worthy of the Von Schweikert Listening Experience. Today’s high-end speakers are known for their luxurious materials, design and quality. And let’s face it, this contributes to the price and pride of ownership. Von Schweikert’s painted finishes are completely bespoke affairs, the completion of which is accomplished by a true artisan with a storied background tying in perfectly with the beauty and the emotion of the instruments we create.
Fausto Reyes, is responsible for the finish of every speakers that leaves our factory. Fausto and his team painstakingly labor by hand to apply our brilliant multi-coat finishes. While we regularly apply automotive inspired paints colors, Fausto’s process is different. The reason for this is before joining Von Schweikert, Fausto led the pro division of Fender Guitar where he oversaw the painting of custom guitar finishes for some of the most notable musicians and wealthiest collectors in the world— Prince and Aerosmith to name just a few. For those who respect and value such artistry and choose one can say truly say they own a “Fausto”.
Add to this our cabinet makers are a second generation American builder reflecting the same craft ethos who have been building cabinets in California for nearly five decades just like the Von Schweikert’s. Proudly building and creating our product in the US, we can say without exaggeration that buying a Von Schweikert loudspeaker is an investment in American craft, heritage and technology.
Awards & Recognition
• RECOMMENDED COMPONENT 2021: Class A
• SHOW STANDOUT: Florida Audio Expo 2019
• BEST OF SHOW: Florida Audio Expo 2019
• 2021 Stereophile Recommended Component: Class A
ULTRA.seven
ULTRA.seven
Von Schweikert Audio is pleased to present their newest addition to our flagship lineup, the ULTRA 7 which began development nearly three years ago.
The ULTRA.seven is our latest entry to our ULTRA series incorporates the most advanced expression of Albert Von Schweikerts first principles of loudspeaker design: exceptional recreation of space, unlimited dynamics, phase coherence, and faithfulness to the source. Electrical efficiency in the mid-90s combined with unlimited power handling allows for use with a range of amplifiers, from moderate power tube designs to the highest power solid state muscle amps. The ULTRA.seven performs brilliantly on all music genres in the most significant rooms yet scales comfortably for use in more typically sized spaces. Each frequency band’s individual frequency and level controls offer ultimate in-room performance. The optional Foundation Hybrid Bass System provides unprecedented placement flexibility and further optimizes performance throughout the musical spectrum. A tribute to Albert Von Schweikert’s legacy of innovation and performance, the ULTRA.seven delivers a musical experience that exceeds other statement-class loudspeakers by up to twice their size and cost.
Specifications
• REQ RESP: 16Hz – 40KHz
• SENSITIVITY: 92dB @ 1w/1m
• IMPEDANCE: 4ohms nominal
• REC. MIN. POWER: 60 watts
• SIZE: 50″ x 21″(rear) x 32.5″
• WEIGHT: 500 lbs each
• FOUNDATION HYBRID BASS AMPLIFIER: 1200 watts R.M.S. (optional upgrade)
Foundation Hybrid Bass System
In the Von Schweikert way, the 800-watt Foundation amplifier powers the woofers. Unlike other active DSP designs, the full range of the signal passes entirely through the analog crossover network. This allows the tonal characteristics of the customer’s preferred power amplifier without compromise yet offers the increased dynamics and precise adjustment of your in-room bass response. Whether you prefer the sound signature of a medium power tube amplifier or a high power solid-state unit, no problem. The analog purity, increased power, and dynamics enhance your investment in a high-end loudspeaker.
Audio professionals and seasoned audiophiles understand the limiting factor in the performance of a system is the listening room. While some listeners have the luxury of a dedicated room outfitted with expensive and often ineffective room treatment, most do not. Within the spectrum of room acoustic challenges, speaker placement is dictated mainly by specific room bass modes activated by the speaker within a room. As a result, audiophiles traditionally place their speakers well into the room to mitigate this problem. It should be noted that irregular bass output caused by the room significantly affects middle and high frequencies with overall tonal balance.
The Foundation Hybrid Bass System allows listeners to locate their speakers where they look and sound best. This flexibility and exceptional room optimization tool is accomplished in a completely analog mode without the use of digital signal processing eschewed by purists because of its potential to introduce time and phase distortions and without affecting the performance of the main system amplifier.
This speaker model can be built as fully passive, or as an optional upgrade with the Foundation Hybrid Bass System.
Triple-wall Quiet Cabinet
Developed in 1994 by Albert Von Scheweikert in association with lab partners from Cal Tech, Von Schweikert cabinets are fabricated using a proprietary triple-wall laminate construction technique. Despite inventive efforts by other makers using aluminum and sheet extruded composites, this triple-wall method remains the gold standard of non-resonant enclosure design.
Our quiet cabinet design’s outermost layer uses a resin-based HDF (high-density fiberboard) sheet. The middle layer is made of synthetic stone adhered to the outer layer using a resin binder. The final layer is a dense woven damping material. The resulting triple-wall composite is approximately three inches in overall thickness. Once the cabinet is assembled, internal bracing is added so that various areas of the cabinet have varying stiffness levels. The elaborate construction techniques combine to create differing native Qs, working together as a symbiotic system of resonance-cancellation to efficiently turn unwanted energy into heat for the absolute best in cabinet vibration control.
Rear Soundfield Creation
Albert Von Schweikert’s earliest research led to the development of an adjustable ambiance retrieval system radiating from the speaker’s rear to recreate a natural soundfield of space & depth using a concert hall recording method known as the spaced omni method. This system replicates the effect when microphones used for recording encode the musical signal with overlaying pickup response patterns.
After studios make a series of recordings using several different microphone types, the playback from each device has tonal differences and create various imaging patterns. This creates a differing perception of space & depth dependent on the recording environment, microphone placement, and each microphone’s distinct off-axis polar response. From this framework, our rear soundfield system creates a natural soundstage, regardless of the recording, microphone type, and recording technique used. Most importantly, the system allows the playback response to remain as close as possible to what was intended by the engineer.
Drivers & Crossovers
For our midrange and bass drivers (exclusive of the sub-bass drivers found in our ULTRA.nine, ULTRA.eleven, and SHOCKWAVE subwoofer series), Von Schweikert has selected Accuton of Germany’s drivers manufactured using ceramic cones. Producing drivers made from Al²O³ hard ceramics offers an incredibly light, stiff cone with high internal damping. Ceramic cones also offer our engineers a mass/stiffness ratio surpassed only by cones made of beryllium and diamond, which are materials that most often are only suitable for smaller diameter drivers used for reproducing high frequencies, such as tweeters Ceramic drivers offer us the best impulse response and significantly reduced distortion over more conventional drivers, as well as we as increased bandwidth and linearly within their useable range. Industry professionals recognize VSA as one of the most experienced and best practices for using these extraordinary drivers.
For the highest frequencies, we have selected the best Danish beryllium tweeters. Our chosen beryllium tweeter is extremely stiff and light. It has high power handling, exceptional detail, and superb dispersion across its usable range. While many associate beryllium tweeters with a certain sterile sound, by correctly applying our proprietary crossover network topology to this remarkable driver, the opposite is true. In short, the VSA beryllium tweeter offers some of the finest and most satisfying high-frequency reproduction in any commercial loudspeaker, regardless of price.
Custom Cabinet Finishing
Beauty and artistry worthy of the Von Schweikert Listening Experience. Today’s high-end speakers are known for their luxurious materials, design and quality. And let’s face it, this contributes to the price and pride of ownership. Von Schweikert’s painted finishes are completely bespoke affairs, the completion of which is accomplished by a true artisan with a storied background tying in perfectly with the beauty and the emotion of the instruments we create.
Fausto Reyes, is responsible for the finish of every speakers that leaves our factory. Fausto and his team painstakingly labor by hand to apply our brilliant multi-coat finishes. While we regularly apply automotive inspired paints colors, Fausto’s process is different. The reason for this is before joining Von Schweikert, Fausto led the pro division of Fender Guitar where he oversaw the painting of custom guitar finishes for some of the most notable musicians and wealthiest collectors in the world— Prince and Aerosmith to name just a few. For those who respect and value such artistry and choose one can say truly say they own a “Fausto”.
Add to this our cabinet makers are a second generation American builder reflecting the same craft ethos who have been building cabinets in California for nearly five decades just like the Von Schweikert’s. Proudly building and creating our product in the US, we can say without exaggeration that buying a Von Schweikert loudspeaker is an investment in American craft, heritage and technology.
Awards & Recognition
• BEST OF SHOW: Pacific Audio Fest 2022
• BEST OF SHOW (COST NO OBECT): AXPONA 2022
• BEST OF SHOW: AXPONA 2022
• FINEST SOUND OF THE SHOW: AXPONA 2022
• BEST OF FLAX: Florida Audio Expo 2022
• BEST OF THE BEST!: Florida Audio Expo 2022
• BEST OF SHOW: Capital Audio Fest 202
ULTRA.nine
ULTRA.nine
The ULTRA.nine is the successor to the venerable includes vastly improved crossover components and even more advanced drivers. The nine also includes MasterBuilt ULTRA cabling, our proprietary wire formulation for improved definition and dynamics. A ribbon super-tweeter extends highs well beyond audibility and creates an increased sense of space and transparency. Adding to the experience, a rear-mounted ribbon super-tweeter and a horn-loaded ambient tweeter create a massive sense of space and holographic imaging surpassed only by the ULTRA.eleven. An integrated rear-mounted version of our Shockwave stand-alone subwoofer handles low bass duties down to 15hz. The ULTRA series suite of controls individually tailors driver-to-driver output for the absolute best in room integration and performance. If you have the space and appropriate reference level ancillary components, be prepared for limitless performance and endless musical enjoyment.
Specifications
• FREQ RESP: 16Hz – 40KHz
• SENSITIVITY: 92dB @ 1w/1m
• IMPEDANCE: 4ohms
• REC. MIN. POWER: 60 watts
• SIZE: 50″ x 21″(rear) x 32.5″
• WEIGHT: 500 lbs each
• FOUNDATION HYBRID BASS AMPLIFIER: 1200 watts R.M.S. (optional upgrade)
Foundation Hybrid Bass System
In the Von Schweikert way, the 800-watt Foundation amplifier powers the woofers. Unlike other active DSP designs, the full range of the signal passes entirely through the analog crossover network. This allows the tonal characteristics of the customer’s preferred power amplifier without compromise yet offers the increased dynamics and precise adjustment of your in-room bass response. Whether you prefer the sound signature of a medium power tube amplifier or a high power solid-state unit, no problem. The analog purity, increased power, and dynamics enhance your investment in a high-end loudspeaker.
Audio professionals and seasoned audiophiles understand the limiting factor in the performance of a system is the listening room. While some listeners have the luxury of a dedicated room outfitted with expensive and often ineffective room treatment, most do not. Within the spectrum of room acoustic challenges, speaker placement is dictated mainly by specific room bass modes activated by the speaker within a room. As a result, audiophiles traditionally place their speakers well into the room to mitigate this problem. It should be noted that irregular bass output caused by the room significantly affects middle and high frequencies with overall tonal balance.
The Foundation Hybrid Bass System allows listeners to locate their speakers where they look and sound best. This flexibility and exceptional room optimization tool is accomplished in a completely analog mode without the use of digital signal processing eschewed by purists because of its potential to introduce time and phase distortions and without affecting the performance of the main system amplifier.
This speaker model can be built as fully passive, or as an optional upgrade with the Foundation Hybrid Bass System.
Triple-wall Quiet Cabinet
Developed in 1994 by Albert Von Scheweikert in association with lab partners from Cal Tech, Von Schweikert cabinets are fabricated using a proprietary triple-wall laminate construction technique. Despite inventive efforts by other makers using aluminum and sheet extruded composites, this triple-wall method remains the gold standard of non-resonant enclosure design.
Our quiet cabinet design’s outermost layer uses a resin-based HDF (high-density fiberboard) sheet. The middle layer is made of synthetic stone adhered to the outer layer using a resin binder. The final layer is a dense woven damping material. The resulting triple-wall composite is approximately three inches in overall thickness. Once the cabinet is assembled, internal bracing is added so that various areas of the cabinet have varying stiffness levels. The elaborate construction techniques combine to create differing native Qs, working together as a symbiotic system of resonance-cancellation to efficiently turn unwanted energy into heat for the absolute best in cabinet vibration control.
Rear Soundfield Creation
Albert Von Schweikert’s earliest research led to the development of an adjustable ambiance retrieval system radiating from the speaker’s rear to recreate a natural soundfield of space & depth using a concert hall recording method known as the spaced omni method. This system replicates the effect when microphones used for recording encode the musical signal with overlaying pickup response patterns.
After studios make a series of recordings using several different microphone types, the playback from each device has tonal differences and create various imaging patterns. This creates a differing perception of space & depth dependent on the recording environment, microphone placement, and each microphone’s distinct off-axis polar response. From this framework, our rear soundfield system creates a natural soundstage, regardless of the recording, microphone type, and recording technique used. Most importantly, the system allows the playback response to remain as close as possible to what was intended by the engineer.
Drivers & Crossovers
For our midrange and bass drivers (exclusive of the sub-bass drivers found in our ULTRA.nine, ULTRA.eleven, and SHOCKWAVE subwoofer series), Von Schweikert has selected Accuton of Germany’s drivers manufactured using ceramic cones. Producing drivers made from Al²O³ hard ceramics offers an incredibly light, stiff cone with high internal damping. Ceramic cones also offer our engineers a mass/stiffness ratio surpassed only by cones made of beryllium and diamond, which are materials that most often are only suitable for smaller diameter drivers used for reproducing high frequencies, such as tweeters Ceramic drivers offer us the best impulse response and significantly reduced distortion over more conventional drivers, as well as we as increased bandwidth and linearly within their useable range. Industry professionals recognize VSA as one of the most experienced and best practices for using these extraordinary drivers.
For the highest frequencies, we have selected the best Danish beryllium tweeters. Our chosen beryllium tweeter is extremely stiff and light. It has high power handling, exceptional detail, and superb dispersion across its usable range. While many associate beryllium tweeters with a certain sterile sound, by correctly applying our proprietary crossover network topology to this remarkable driver, the opposite is true. In short, the VSA beryllium tweeter offers some of the finest and most satisfying high-frequency reproduction in any commercial loudspeaker, regardless of price.
Custom Cabinet Finishing
Beauty and artistry worthy of the Von Schweikert Listening Experience. Today’s high-end speakers are known for their luxurious materials, design and quality. And let’s face it, this contributes to the price and pride of ownership. Von Schweikert’s painted finishes are completely bespoke affairs, the completion of which is accomplished by a true artisan with a storied background tying in perfectly with the beauty and the emotion of the instruments we create.
Fausto Reyes, is responsible for the finish of every speakers that leaves our factory. Fausto and his team painstakingly labor by hand to apply our brilliant multi-coat finishes. While we regularly apply automotive inspired paints colors, Fausto’s process is different. The reason for this is before joining Von Schweikert, Fausto led the pro division of Fender Guitar where he oversaw the painting of custom guitar finishes for some of the most notable musicians and wealthiest collectors in the world— Prince and Aerosmith to name just a few. For those who respect and value such artistry and choose one can say truly say they own a “Fausto”.
Add to this our cabinet makers are a second generation American builder reflecting the same craft ethos who have been building cabinets in California for nearly five decades just like the Von Schweikert’s. Proudly building and creating our product in the US, we can say without exaggeration that buying a Von Schweikert loudspeaker is an investment in American craft, heritage and technology.
Awards & Recognition
• OUTSTANDING OVERALL PERFORMANCE AWARD 2021: Super AV
• EDITORS’ CHOICE AWARD 2021: The Absolute Sound
• BEST FLOORSTANDING SPEAKERS 2021: Part-Time Audiophile
• EDITORS’ CHOICE AWARD 2020: The Absolute Sound
• EDITORS’ CHOICE AWARD 2019: The Absolute Sound
• BEST OF SHOW: Munich HIGH-END 2019
• BEST OF SHOW: AXPONA 2019
• BEST OF SHOW: Rocky Mountain Audio Fest 2018
• BEST OF SHOW, GOLD AWARD: Rocky Mountain Audio Fest 2018
ULTRA.eleven
ULTRA.eleven
The ULTRA 11 achieves a level of performance and realism previously not possible utilizing an all-new cabinet noise reduction design, low distortion drivers and signal path, as well as our proprietary Global Axis Integration Network circuit design.
The ULTRA.eleven defines the term flagship. Completely hand-assembled and built to order, the ULTRA.eleven represents an awe-inspiring creation that only a lucky few will own. Standing eight feet tall, weighing 750 pounds, and featuring eleven individual drivers, the ULTRA.eleven is as awesome to behold as it is to listen to. Spanning the range from 16hz to over 40,000khz, the ULTRA.eleven presents effortless dynamics and natural scale with near zero distortion. Forget the technicolor presentation of many super speakers, from chamber orchestras – to symphonies – to jazz and rock and roll; the ULTRA.eleven always presents music with natural size and scale. Dual rear-mounted shockwave subwoofers powered by two 1000-watt amplifiers create a robust foundation that allows music to float on the power and majesty one should expect at this price level. While there are rivals, the ULTRA.eleven simply has no peer.
Specifications
• FREQ RESP: 16Hz – 40KHz
• SENSITIVITY: 94dB @ 1w/1m
• IMPEDANCE: 4ohms nominal
• REC. MIN. POWER: 100 watts
• SIZE: 84″ x 21″(rear) x 30″
• CRATED: 94”x29”x43
• FOUNDATION HYBRID BASS AMPLIFIER: 1200 watts R.M.S. (optional upgrade)
Foundation Hybrid Bass System
In the Von Schweikert way, the 800-watt Foundation amplifier powers the woofers. Unlike other active DSP designs, the full range of the signal passes entirely through the analog crossover network. This allows the tonal characteristics of the customer’s preferred power amplifier without compromise yet offers the increased dynamics and precise adjustment of your in-room bass response. Whether you prefer the sound signature of a medium power tube amplifier or a high power solid-state unit, no problem. The analog purity, increased power, and dynamics enhance your investment in a high-end loudspeaker.
Audio professionals and seasoned audiophiles understand the limiting factor in the performance of a system is the listening room. While some listeners have the luxury of a dedicated room outfitted with expensive and often ineffective room treatment, most do not. Within the spectrum of room acoustic challenges, speaker placement is dictated mainly by specific room bass modes activated by the speaker within a room. As a result, audiophiles traditionally place their speakers well into the room to mitigate this problem. It should be noted that irregular bass output caused by the room significantly affects middle and high frequencies with overall tonal balance.
The Foundation Hybrid Bass System allows listeners to locate their speakers where they look and sound best. This flexibility and exceptional room optimization tool is accomplished in a completely analog mode without the use of digital signal processing eschewed by purists because of its potential to introduce time and phase distortions and without affecting the performance of the main system amplifier.
This speaker model can be built as fully passive, or as an optional upgrade with the Foundation Hybrid Bass System.
Triple-wall Quiet Cabinet
Developed in 1994 by Albert Von Scheweikert in association with lab partners from Cal Tech, Von Schweikert cabinets are fabricated using a proprietary triple-wall laminate construction technique. Despite inventive efforts by other makers using aluminum and sheet extruded composites, this triple-wall method remains the gold standard of non-resonant enclosure design.
Our quiet cabinet design’s outermost layer uses a resin-based HDF (high-density fiberboard) sheet. The middle layer is made of synthetic stone adhered to the outer layer using a resin binder. The final layer is a dense woven damping material. The resulting triple-wall composite is approximately three inches in overall thickness. Once the cabinet is assembled, internal bracing is added so that various areas of the cabinet have varying stiffness levels. The elaborate construction techniques combine to create differing native Qs, working together as a symbiotic system of resonance-cancellation to efficiently turn unwanted energy into heat for the absolute best in cabinet vibration control.
Rear Soundfield Creation
Albert Von Schweikert’s earliest research led to the development of an adjustable ambiance retrieval system radiating from the speaker’s rear to recreate a natural soundfield of space & depth using a concert hall recording method known as the spaced omni method. This system replicates the effect when microphones used for recording encode the musical signal with overlaying pickup response patterns.
After studios make a series of recordings using several different microphone types, the playback from each device has tonal differences and create various imaging patterns. This creates a differing perception of space & depth dependent on the recording environment, microphone placement, and each microphone’s distinct off-axis polar response. From this framework, our rear soundfield system creates a natural soundstage, regardless of the recording, microphone type, and recording technique used. Most importantly, the system allows the playback response to remain as close as possible to what was intended by the engineer.
Drivers & Crossovers
For our midrange and bass drivers (exclusive of the sub-bass drivers found in our ULTRA.nine, ULTRA.eleven, and SHOCKWAVE subwoofer series), Von Schweikert has selected Accuton of Germany’s drivers manufactured using ceramic cones. Producing drivers made from Al²O³ hard ceramics offers an incredibly light, stiff cone with high internal damping. Ceramic cones also offer our engineers a mass/stiffness ratio surpassed only by cones made of beryllium and diamond, which are materials that most often are only suitable for smaller diameter drivers used for reproducing high frequencies, such as tweeters Ceramic drivers offer us the best impulse response and significantly reduced distortion over more conventional drivers, as well as we as increased bandwidth and linearly within their useable range. Industry professionals recognize VSA as one of the most experienced and best practices for using these extraordinary drivers.
For the highest frequencies, we have selected the best Danish beryllium tweeters. Our chosen beryllium tweeter is extremely stiff and light. It has high power handling, exceptional detail, and superb dispersion across its usable range. While many associate beryllium tweeters with a certain sterile sound, by correctly applying our proprietary crossover network topology to this remarkable driver, the opposite is true. In short, the VSA beryllium tweeter offers some of the finest and most satisfying high-frequency reproduction in any commercial loudspeaker, regardless of price.
Custom Cabinet Finishing
Beauty and artistry worthy of the Von Schweikert Listening Experience. Today’s high-end speakers are known for their luxurious materials, design and quality. And let’s face it, this contributes to the price and pride of ownership. Von Schweikert’s painted finishes are completely bespoke affairs, the completion of which is accomplished by a true artisan with a storied background tying in perfectly with the beauty and the emotion of the instruments we create.
Fausto Reyes, is responsible for the finish of every speakers that leaves our factory. Fausto and his team painstakingly labor by hand to apply our brilliant multi-coat finishes. While we regularly apply automotive inspired paints colors, Fausto’s process is different. The reason for this is before joining Von Schweikert, Fausto led the pro division of Fender Guitar where he oversaw the painting of custom guitar finishes for some of the most notable musicians and wealthiest collectors in the world— Prince and Aerosmith to name just a few. For those who respect and value such artistry and choose one can say truly say they own a “Fausto”.
Add to this our cabinet makers are a second generation American builder reflecting the same craft ethos who have been building cabinets in California for nearly five decades just like the Von Schweikert’s. Proudly building and creating our product in the US, we can say without exaggeration that buying a Von Schweikert loudspeaker is an investment in American craft, heritage and technology.
Awards & Recognition
• BEST FLOORSTANDING SPEAKERS 2021: Part-Time Audiophile
• BEST OF SHOW: Florida Audio Expo 2020
• BEST OF 2019: The Occasional – Part-Time Audiophile
• BEST OF SHOW: Capital Audio Fest 2019
• THE BEST OF SHOW: AXPONA 2019
• THE BEST OF SHOW: AS GOOD AS IT GETS – Capital Audio Fest 2019
• BEST OF SHOW: Capital Audio Fest 2018
• BEST OF SHOW: GOLD AWARD – Munich HIGH-END 2018
• THE BEST OF SHOW: AXPONA 2018
• THE BEST OF SHOW: Capital Audio Fest 2017
• BEST SYSTEM PERFORMANCE: California Audio Show 2017
• THE BEST OF SHOW: LA Audio Show 2017
ENDEAVOR REFERENCE SPEAKERS
ENDEAVOR E-3 MKII
ENDEAVOR E-3 MKII
Featuring the latest innovations in audio technology, the E-3 MkII is the most advanced and affordable speaker system on the market.
It has been said that science cannot define musical expression, with its emotion and passion, but musical expression can define science. Thus, the E-3 MkII was engineered by a team of experts in the art of musical appreciation as well as advanced audio engineering. Easy to drive and all amps are suitable.
ABOUT
In order to convey the full expression of musical emotion, the E-3MkII fulfills the promise often made but rarely achieved:
- Each E-3MkII speaker system is provided with a comprehensive measurement package as proof of accuracy.
- Classic aesthetic design, with slender minimum baffle for precise focus.
Featuring advanced speaker components often found in systems many times our price:
- Anodized aluminum woofer cones, Kevlar midrange, and Dual Ring Radiator treble unit ensure highest level of sonic transparency in its class.
- Top-class measurements with lowest distortion/coloration in price range.
- Non-parallel walls and advanced cabinet design for sonic purity.
- Linkwitz-Riley crossover filters ensure correct phase coherence and timing.
SYSTEM TYPE
Woofers: Two 175mm anodized aluminum coned woofers. Double-stacked magnets provide fast transient response and great dynamics. Faraday ring-type motor/voice coil, cooled with aluminum phase plugs and vented motors for low distortion
Midrange: 165mm Kevlar coned high performance midrange unit with Faraday ring motor/voice coil, phase plug provides linear response and low distortion. Top-class design & sound.
Midrange Loading: Tapered transmission line for low coloration and high dynamic range
Treble Unit: Dual Ring Radiator, rubberized fabric diaphragms, long throw suspension for low distortion and high dynamic range, Ferro-Fluid magnetic oil in gap for cooling at high volume levels, and large chamber for absorption of rear wave.
Voicing Information: The E-3MkII can be seen to be an extremely accurate monitor-type of system, but was carefully voiced to sound like a musical instrument rather than a “sterile” facsimile. The bass range is extremely potent, yet so quick as to not overload your listening room. The depth, image focus and dimensionality are top-class.
SPECIFICATIONS
FREQ RESP:29Hz – 22KHz
SENSITIVITY: 89dB @ 1w/1m
IMPEDANCE: 4ohms
REC. MIN. POWER: 60 watts
SIZE: 44″ x 9″ x 15″
WEIGHT: 82 lbs per channel
WARRANTY
Five-Years – When purchased through an authorized dealer
ENDEAVOR RE
ENDEAVOR RE
Building on the highly successful lineage of the world-class Endeavor™ loudspeakers, Von Schweikert Audio is please to present our newest offering; the Endeavor™ Reference Edition. This model incorporates the highly refined full-range performance one expects from a VSA loudspeaker including our critically acclaimed Beryllium tweeter which is used throughout the VR and ULTRA line of flagship loudspeakers.
ABOUT
The Endeavor RE also incorporates other design VSA elements like our proprietary Global Axis Intetegrated Network, Rear-Ambient Retrieval System, Bi-Wire inputs with isolated networks and high-quality crossover components. The Reference Edition is identical to our Special Edition in all ways except for finish. The Endeavor RE comes in our American Walnut finish which is much less expensive that the automotive finish on the Special Edition.
Featuring advanced speaker components often found in systems many times our price:
Anodized aluminum woofer cones, Kevlar midrange, and damped Beryllium dome tweeter to ensure highest level of sonic transparency possible.
Rear ambience retrieval driver. To match the transient response and tone quality of the superb front tweeter, we have employed a 75mm ribbon tweeter driven by a Neodymium magnet system for the lowest distortion and widest frequency range we have measured from a 75mm ribbon.
Top-class measurements with lowest distortion/coloration in its price range.
Non-parallel walls and advanced cabinet design for sonic purity.
Linkwitz-Riley crossover filters ensure correct phase coherence and timing.
SYSTEM TYPE
Connections: WBT Next-Gen Gold Bi-Wire binding posts.
Woofers: Two 175mm anodized aluminum coned woofers. Double-stacked magnets provide fast transient response and great dynamics. Faraday ring-type motor/voice coil, cooled with aluminum phase plugs and vented motors for low distortion
Midrange: 165mm Kevlar coned high performance midrange unit with Faraday ring motor/voice coil, phase plug provides linear response and low distortion. Top-class design & sound.
Midrange Loading: Tapered transmission line for low coloration and high dynamic range
Treble Unit: An advanced metal dome tweeter using a Beryllium substrate with ceramic damping layer to eliminate harsh sound quality. Driven by an FEA-designed Neodymium ring magnetic system, the rear wave is absorbed by a specialized rear chamber filled with fiberglass. This new tweeter has the lowest measured distortion of any dome tweeter on the market, cost-no-object.
Voicing Information: The Endeavor Special Edition is a highly accurate reference quality loudspeaker that was carefully voiced to sound like a musical instrument rather than a “sterile” facsimile. The bass range is extremely potent, yet so quick as to not overload your listening room. The depth, image focus and dimensionality are top-class.
Cabinet Design: To eliminate cabinet “resonance” and coloration, we utilize our proprietary Aktive 2.0 construction by building a Triple Wall panel consisting of a 75mm thickness of high-density resin/wood powder, artificial stone, and hard rubber. These layers resonate at differing Q frequencies, which enables the vibration to “actively” reduce sound transmission through the cabinet proper. This cabinet design is not only superior to solid aluminum but is a far more elegant solution allowing us to budget far more of the build costs towards the components that make music instead of investing so much into a cabinet that does not.
SPECIFICATIONS
FREQ RESP: 29Hz – 22KHz
SENSITIVITY: 89dB @ 1w/1m
IMPEDANCE: 4ohms
REC. MIN. POWER: 60 watts
SIZE: 44″ x 9″ x 15″
WEIGHT: 82 lbs per channel
WARRANTY
Five-Year Manufacturer Warranty
When purchased through an authorized dealer. See Owners Manual for details.
ADDITIONAL DETAILS
The Endeavor Reference Edition innovations in audio technology make is the highest performing loudspeaker in its price category. But science alone cannot define musical expression, with its emotion and passion. Thus, the RE was engineered by a team of experts in the art of musical appreciation as well as advanced audio engineering. Easy to drive and all amps are suitable.
ENDEAVOR SE
Endeavor SE
Building on the highly successful lineage of the world-class Endeavor™ loudspeakers, Von Schweikert Audio is please to present our newest offering; the Endeavor™ Special Edition. This model incorporates the highly refined full-range performance of its bigger brother, the E-5 including our critically acclaimed Beryllium tweeter which is used throughout the VR and ULTRA line of flagship loudspeakers.
ABOUT
The Endeavor SE also incorporates other design VSA elements like our proprietary Rear-Ambient Retrieval System, Bi-Wire inputs with isolated networks and high-quality crossover components. Last but not least, the Special Edition comes in our high-gloss multi layer paint finish as standard, customer’s can choose a custom color to accommodate their specific tastes with matching painted plinth for the highest level of fit and finish.
- Featuring advanced speaker components often found in systems many times our price.
- Anodized aluminum woofer cones, Kevlar midrange, and damped Beryllium dome tweeter to ensure highest level of sonic transparency possible.
- Rear ambience retrieval driver. To match the transient response and tone quality of the superb front tweeter, we have employed a 75mm ribbon tweeter driven by a Neodymium magnet system for the lowest distortion and widest frequency range we have measured from a 75mm ribbon.
- Top-class measurements with lowest distortion/coloration in its price range.
- Non-parallel walls and advanced cabinet design for sonic purity.
- Linkwitz-Riley crossover filters ensure correct phase coherence and timing.
SYSTEM TYPE
Connections: WBT Next-Gen Gold Bi-Wire binding posts.
Woofers: Two 175mm anodized aluminum coned woofers. Double-stacked magnets provide fast transient response and great dynamics. Faraday ring-type motor/voice coil, cooled with aluminum phase plugs and vented motors for low distortion
Midrange: 165mm Kevlar coned high performance midrange unit with Faraday ring motor/voice coil, phase plug provides linear response and low distortion. Top-class design & sound.
Midrange Loading: Tapered transmission line for low coloration and high dynamic range
Treble Unit: An advanced metal dome tweeter using a Beryllium substrate with ceramic damping layer to eliminate harsh sound quality. Driven by an FEA-designed Neodymium ring magnetic system, the rear wave is absorbed by a specialized rear chamber filled with fiberglass. This new tweeter has the lowest measured distortion of any dome tweeter on the market, cost-no-object.
Voicing Information: The Endeavor Special Edition is a highly accurate reference quality loudspeaker that was carefully voiced to sound like a musical instrument rather than a “sterile” facsimile. The bass range is extremely potent, yet so quick as to not overload your listening room. The depth, image focus and dimensionality are top-class.
Cabinet Design: To eliminate cabinet “resonance” and coloration, we utilize our proprietary Aktive 2.0 construction by building a Triple Wall panel consisting of a 75mm thickness of high-density resin/wood powder, artificial stone, and hard rubber. These layers resonate at differing Q frequencies, which enables the vibration to “actively” reduce sound transmission through the cabinet proper. This cabinet design is not only superior to solid aluminum but is a far more elegant solution allowing us to budget far more of the build costs towards the components that make music instead of investing so much into a cabinet that does not.
SPECIFICATIONS
FREQ RESP: 29Hz – 22KHz
SENSITIVITY: 89dB @ 1w/1m
IMPEDANCE: 4ohms
REC. MIN. POWER: 60 watts
SIZE: 44″ x 9″ x 15″
WEIGHT: 82 lbs per channel
WARRANTY
Five Years – When purchased through an authorized dealer
ADDITIONAL INFORMATION
The Endeavor Special Edition innovations in audio technology make is the highest performing loudspeaker in its price category. But science alone cannot define musical expression, with its emotion and passion. Thus, the SE was engineered by a team of experts in the art of musical appreciation as well as advanced audio engineering. Easy to drive and all amps are suitable.
AWARDS
EDITORS’ CHOICE AWARD 2021 – The Absolute Sound
EDITORS’ CHOICE AWARD 2020 – The Absolute Sound
EDITORS’ CHOICE AWARD 2019 – The Absolute Sound
CENTER CHANNEL
LCR-4
LCR - 4
Available in high-gloss black, the LCR-4 Loudspeaker is the perfect choice for someone looking for a full-range reference monitor solution regardless if they want one or seven channels of sound. When paired with Von Schweikert Audio’s floor-standing speakers, the LCR-4 is the best value center channel available, blends seamlessly and brings vocal intelligibility to the forefront effortlessly.
ABOUT
This monitor uses very high quality drivers designed by Scanspeak of Denmark. Since the twin 7in (178mm) bass-mids have to reproduce both the bass and midrange frequencies, it is a challenge to design a driver that will reproduce the human voice with extreme clarity, while also being asked to reproduce deep bass frequencies at a high volume level. In order to obtain the maximum vocal intelligibility, the LCR-4 uses specially designed drivers that were optimized for this function, and consist of high-tech laminated cones driven by patented Low Distortion Motors. The Scan designed 1” tweeter has a long throw, chambered rear cavity to reduce resonance, a specially treated fabric dome, and the Low Distortion Motor. This tweeter combines both high details with extremely smooth sound, especially in the important vocal range.
To ensure extreme clarity in the vocal range, we have eliminated cavity resonance by using a sealed box design, and to eliminate the cabinet wall distortion, we have utilized our Triple-Wall Noise Canceling Technology. By bonding three different materials together, included resin-impregnated MDF, artificial stone, and rubberized felt in a 2.75” thick composite, the opposing Q’s of these materials cancel the natural tendency of the walls to vibrate.In order to synchronize the bass-mids with the tweeter, we have employed our Global Axis Integration Network, a 4th order crossover slope which is phase consistent and has almost zero distortion. Since we are not pushing the drivers outside of their intended operating range, the clarity of the LCR-4 is at the state-of-the-art level, which is extremely important for vocal intelligibility in a center channel application and has no problem keeping up with our large floor-standing left and right main speakers.
SYSTEM TYPE
VSA’s engineering team succeeded in converting our proprietary Triple-Wall Noise Cancelling technology to operate in these smaller cabinets. Three different materials with opposing Q factors are used to build the cabinet walls, resulting in clarity that must be heard to be appreciated. The 65mm (2.75″) thick walls consist of 20mm resin impregnated fiberboard, 20mm artificial stone, 20mm rubberized felt, and 5mm vibration-proof adhesive layers. This cabinet wall design is superior to aluminum, plywood, or MDF, based on measurements of panel ringing.
SPECIFICATIONS
FREQ RESP: 32Hz – 25KHz
SENSITIVITY: 90dB
IMPEDANCE: 4ohms
REC. MIN. POWER: 50watts
SIZE: 9.5″ x 22″x 14″
WEIGHT: 51lbs
WARRANTY
Five-Years – When purchased through an authorized dealer
ADDITIONAL INFORMATION
Designed for use as a center channel speaker with the VR-22, VR-3, VR-33, VR-35, VR-4, VR-44 and VR-5 Series of speaker models, the LCR-4 is a giant step forward in the area of vocal intelligibility at a reasonable price point.
SHOCKWAVE

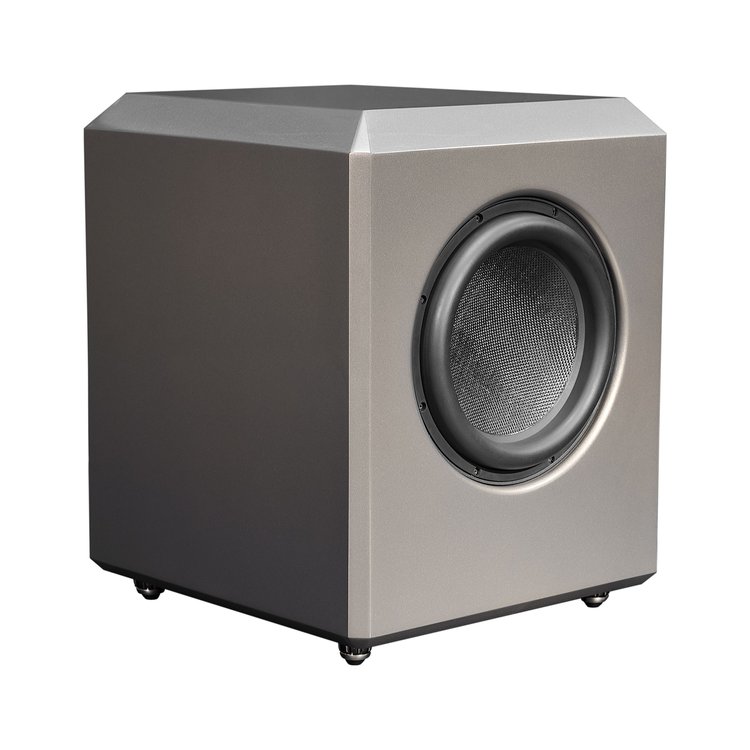

SHOCKWAVE.subwoofer
SHOCKWAVE.subwoofer
SHOCKWAVE subwoofers are available in 10” (coming Spring 2025), 12”, and 15” sizes and feature slotted port quasi-transmission line loading. All woofers integrate perfectly into any room and any loudspeaker design, retaining the hallmark power, speed, and detail Von Schweikert speakers are known for. A light and stiff carbon fiber driver featuring a vented voice coil and massive motor is perfectly tuned to deliver response down to 12hz. Powering the system is our proprietary Foundation amplifier technology, outputting 1000 watts. The amplifier circuit features an isolation transformer, which allows us to take the signal directly from the system’s main amplifier for the purest signal tracking, lowest distortion, and zero signal delay. Phase is adjustable in either standard or inverted polarity from O-360 degrees depending on the application, for example, bass reinforcement or irregular room bass modes in the room. A new feature in Q1 2025 will allow for stacking multiple SHOCKWAVEs for the ultimate bass performance regardless of room size.
Specifications
SHOCKWAVE 10
COMING SOON in 2025
SHOCKWAVE 12
• FREQUENCY RANGE: 8Hz – 180KHz, +/- 1db
• IMPEDANCE: 4ohms
• REC. MIN. POWER: 50 watts
• SIZE: 17″ x 17″x 17″
• WEIGHT: 130 lbs
SHOCKWAVE 15
• FREQUENCY RANGE: 8Hz – 180KHz, +/- 1db
• IMPEDANCE: 4ohms
• REC. MIN. POWER: 50 watts
• SIZE: 19″ x 19″x 19″
• WEIGHT: 145lbs
Foundation Hybrid Bass System
In the Von Schweikert way, the 800-watt Foundation amplifier powers the woofers. Unlike other active DSP designs, the full range of the signal passes entirely through the analog crossover network. This allows the tonal characteristics of the customer’s preferred power amplifier without compromise yet offers the increased dynamics and precise adjustment of your in-room bass response. Whether you prefer the sound signature of a medium power tube amplifier or a high power solid-state unit, no problem. The analog purity, increased power, and dynamics enhance your investment in a high-end loudspeaker.
Audio professionals and seasoned audiophiles understand the limiting factor in the performance of a system is the listening room. While some listeners have the luxury of a dedicated room outfitted with expensive and often ineffective room treatment, most do not. Within the spectrum of room acoustic challenges, speaker placement is dictated mainly by specific room bass modes activated by the speaker within a room. As a result, audiophiles traditionally place their speakers well into the room to mitigate this problem. It should be noted that irregular bass output caused by the room significantly affects middle and high frequencies with overall tonal balance.
The Foundation Hybrid Bass System allows listeners to locate their speakers where they look and sound best. This flexibility and exceptional room optimization tool is accomplished in a completely analog mode without the use of digital signal processing eschewed by purists because of its potential to introduce time and phase distortions and without affecting the performance of the main system amplifier.
This speaker model can be built as fully passive, or as an optional upgrade with the Foundation Hybrid Bass System.
Triple-wall Quiet Cabinet
Developed in 1994 by Albert Von Scheweikert in association with lab partners from Cal Tech, Von Schweikert cabinets are fabricated using a proprietary triple-wall laminate construction technique. Despite inventive efforts by other makers using aluminum and sheet extruded composites, this triple-wall method remains the gold standard of non-resonant enclosure design.
Our quiet cabinet design’s outermost layer uses a resin-based HDF (high-density fiberboard) sheet. The middle layer is made of synthetic stone adhered to the outer layer using a resin binder. The final layer is a dense woven damping material. The resulting triple-wall composite is approximately three inches in overall thickness. Once the cabinet is assembled, internal bracing is added so that various areas of the cabinet have varying stiffness levels. The elaborate construction techniques combine to create differing native Qs, working together as a symbiotic system of resonance-cancellation to efficiently turn unwanted energy into heat for the absolute best in cabinet vibration control.
Custom Cabinet Finishing
Beauty and artistry worthy of the Von Schweikert Listening Experience. Today’s high-end speakers are known for their luxurious materials, design and quality. And let’s face it, this contributes to the price and pride of ownership. Von Schweikert’s painted finishes are completely bespoke affairs, the completion of which is accomplished by a true artisan with a storied background tying in perfectly with the beauty and the emotion of the instruments we create.
Fausto Reyes, is responsible for the finish of every speakers that leaves our factory. Fausto and his team painstakingly labor by hand to apply our brilliant multi-coat finishes. While we regularly apply automotive inspired paints colors, Fausto’s process is different. The reason for this is before joining Von Schweikert, Fausto led the pro division of Fender Guitar where he oversaw the painting of custom guitar finishes for some of the most notable musicians and wealthiest collectors in the world— Prince and Aerosmith to name just a few. For those who respect and value such artistry and choose one can say truly say they own a “Fausto”.
Add to this our cabinet makers are a second generation American builder reflecting the same craft ethos who have been building cabinets in California for nearly five decades just like the Von Schweikert’s. Proudly building and creating our product in the US, we can say without exaggeration that buying a Von Schweikert loudspeaker is an investment in American craft, heritage and technology.
CENTER STAGE 2 LS FOOTER
Center Stage 2 LS Footer
Center Stage2 LA Footer
Engineered by Critical Mass Systems, the Center Stage2 “LS” Series loudspeaker foot is an unparalleled breakthrough in cabinet resonance mitigation; the culmination in years of experimentation and development based on the groundbreaking and award-winning Center Stage2 footer technology. No matter how good your system is, the Center Stage2 “LS” Series loudspeaker foot will add a new dimension to your listening experience, making any system sound better.
ABOUT
The “LS” series foot dramatically reduces distortion through improved resonance control which allows you to experience far greater accuracy to the original recording across the entire frequency spectrum by lowering the noise floor of your system. Musical instruments and vocals will emerge from the blackest of backgrounds. And the higher your system’s resolution, the greater your results will be from this revolutionary resonance mitigation technology.
THE PERFECT FIT
For ultimate performance, we recommend four footers per loudspeaker. The entire top surface of the footer must be in contact with the bottom of your speaker for optimum isolation and resonance mitigation. To this end, we offer three mounting options to accommodate any loudspeaker.
Simply Place Directly Under Your Speakers
This is by far the easiest mounting solution and is 100% effective in isolating your loudspeakers while eliminating cabinet resonances delivering the lowest distortion possible.
Threaded Adapters
Included in the price of each footer is a threaded titanium adapter manufactured to fit your loudspeaker’s specifications. This mounting option offers an increased level of safety and security for your loudspeakers and is highly recommended for those benefits.
Custom Outriggers
Should you desire, our hardware design and manufacturing team will fabricate custom airplane aluminum outriggers for your loudspeakers that offer an attractive aesthetic while providing the same level of sonic performance as if the LS Footers were mounting directly to the bottom of your speakers. Please contact us for price quote.
SPECIFICATIONS
The Center Stage2 “LS” Series loudspeaker foot is engineered to handle a tremendous amount of weight, far more than any speaker currently in production. However, for peak operational performance we’ve provide the following weight limit recommendations:
LS 0.8 – Max operational weight of a loudspeaker cabinet 200 lbs./ 91 Kilos or less*
LS 1.0 – Max operational weight of a loudspeaker cabinet 800 lbs./ 363 Kilos or less*
LS 1.5 – Max operational weight of a loudspeaker cabinet 1,600 lbs./ 726 Kilos or less*
*4 feet recommended per loudspeaker cabinet
WARRANTY
Five-Years – When purchased through an authorized dealer
